Getting Started

This guide introduces you to the basics of using the gfw-api-python-client. For detailed and alternative installation instructions, please refer to the Installation section. Here is a Jupyter Notebook version for this guide.

Note: See the Datasets, Data Caveats, and Terms of Use pages in the GFW API documentation for details on GFW data, API licenses, and rate limits.

Authorization

Before using the gfw-api-python-client, you need to obtain an API access token from the Global Fishing Watch API portal. This token is crucial for authenticating your requests. For security and convenience, it’s highly recommended to set your access token as an environment variable.

Linux/macOS

export GFW_API_ACCESS_TOKEN="<PASTE_YOUR_GFW_API_ACCESS_TOKEN_HERE>"

Windows

$env:GFW_API_ACCESS_TOKEN = "<PASTE_YOUR_GFW_API_ACCESS_TOKEN_HERE>"

Google Colaboratory

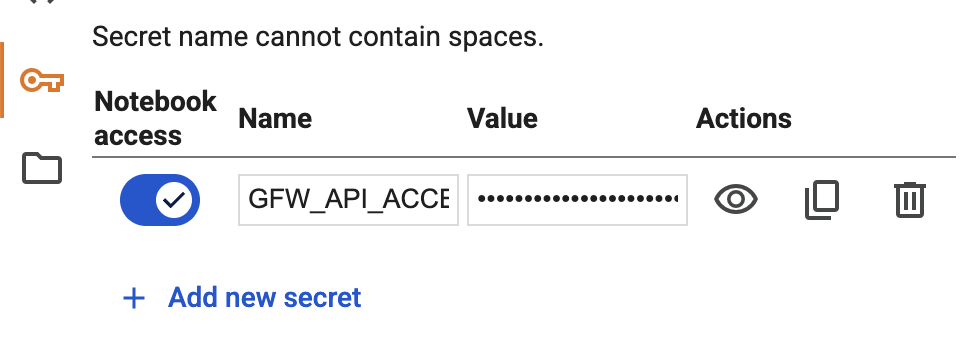

1. Click the key icon (🔑) in the left sidebar to open Secrets.

2. Add a new secret named GFW_API_ACCESS_TOKEN.

3. Paste your API access token as the value and enable Notebook access.

Installation

The gfw-api-python-client can be easily installed using pip:

pip install gfw-api-python-client

For more detailed installation instructions, including setting up a virtual environment, please see the dedicated Installation section.

Basic Usage

Once installed, you can import and use gfw-api-python-client in your Python codes:

import datetime
import os

import gfwapiclient as gfw


access_token = os.environ.get(
    "GFW_API_ACCESS_TOKEN",
    "<OR_PASTE_YOUR_GFW_API_ACCESS_TOKEN_HERE>",
)

gfw_client = gfw.Client(
    access_token=access_token,
)

Important: The gfw-api-python-client is async-first: all API methods are asynchronous and must be executed using Python’s async / await syntax. Environments with built-in async support (e.g., Jupyter Notebook, Google Colab, and async web frameworks such as FastAPI) can call client methods directly using await, with no additional setup. Environments without built-in async support (e.g., plain Python scripts, Python modules, or synchronous web frameworks such as Flask and Django) must explicitly run asynchronous code using an event loop. This can be done with tools such as asyncio.run, trio.run, anyio.run, or framework-specific async integration.

Tip: Use IPython or Python 3.11+ with python -m asyncio to run gfw-api-python-client code interactively, as these environments support executing async / await expressions directly in the console.

Making API Requests

Searching for a Vessel by MMSI

vessel_search_result = await gfw_client.vessels.search_vessels(
    query="412331038",
)

vessel_search_ids = [
    self_reported_info.id
    for vessel_search_item in vessel_search_result.data()
    if vessel_search_item.registry_info_total_records >= 1
    for self_reported_info in vessel_search_item.self_reported_info
]

print(vessel_search_ids)

Output:

['755a48dd4-4bee-4bcf-7b5f-9baea058fc7b', '3dad49b0b-b2e0-9347-0c4c-e39fea560f9f']

Note: It is recommended to prioritize vessels that include both registry_info and self_reported_info (AIS), as this indicates a successful match between registry data and AIS information.

Getting Details of Vessels Filtered by Vessel Searched IDs

vessels_result = await gfw_client.vessels.get_vessels_by_ids(
    ids=vessel_search_ids,
)

vessel_self_reported_infos = [
    self_reported_info
    for vessel_item in vessels_result.data()
    for self_reported_info in vessel_item.self_reported_info
]

vessel_ids = [
    self_reported_info.id for self_reported_info in vessel_self_reported_infos
]

print(vessel_ids)

Output:

['755a48dd4-4bee-4bcf-7b5f-9baea058fc7b', '3dad49b0b-b2e0-9347-0c4c-e39fea560f9f']

Getting Insights Related to Fishing Events for the Vessel Searched

Important: start_date must be on or after January 1, 2020

start_datetime = min(
    [
        self_reported_info.transmission_date_from
        for self_reported_info in vessel_self_reported_infos
    ]
)
start_date = start_datetime.date()
start_date = max(start_date, datetime.date.fromisoformat("2020-01-01"))


end_datetime = max(
    [
        self_reported_info.transmission_date_to
        for self_reported_info in vessel_self_reported_infos
    ]
)
end_date = end_datetime.date()

dataset_id = "public-global-vessel-identity:latest"
dataset_ids_vessel_ids = [
    {"dataset_id": dataset_id, "vessel_id": vessel_id} for vessel_id in vessel_ids
]

insights_result = await gfw_client.insights.get_vessel_insights(
    includes=["FISHING"],
    start_date=start_date,
    end_date=end_date,
    vessels=dataset_ids_vessel_ids,
)

insights_df = insights_result.df()

print(insights_df.info())

Output:

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 1 entries, 0 to 0
Data columns (total 6 columns):
 #   Column                       Non-Null Count  Dtype
---  ------                       --------------  -----
 0   period                       1 non-null      object
 1   vessel_ids_without_identity  0 non-null      object
 2   gap                          0 non-null      object
 3   coverage                     0 non-null      object
 4   apparent_fishing             1 non-null      object
 5   vessel_identity              0 non-null      object
dtypes: object(6)
memory usage: 180.0+ bytes

insights_data = insights_result.data()

print(dict(insights_data.apparent_fishing.period_selected_counters))

Output:

{'events': 398, 'events_gap_off': None, 'events_in_rfmo_without_known_authorization': 144, 'events_in_no_take_mpas': 0}

Getting Fishing Events for the Vessels Searched

events_result = await gfw_client.events.get_all_events(
    datasets=["public-global-fishing-events:latest"],
    start_date=start_date,
    end_date=end_date,
    vessels=vessel_ids,
)

events_df = events_result.df()

print(events_df.info())

Output:

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 398 entries, 0 to 397
Data columns (total 14 columns):
 #   Column        Non-Null Count  Dtype
---  ------        --------------  -----
 0   start         398 non-null    datetime64[ns, UTC]
 1   end           398 non-null    datetime64[ns, UTC]
 2   id            398 non-null    object
 3   type          398 non-null    object
 4   position      398 non-null    object
 5   regions       398 non-null    object
 6   bounding_box  398 non-null    object
 7   distances     398 non-null    object
 8   vessel        398 non-null    object
 9   encounter     0 non-null      object
 10  fishing       398 non-null    object
 11  gap           0 non-null      object
 12  loitering     0 non-null      object
 13  port_visit    0 non-null      object
dtypes: datetime64[ns, UTC](2), object(12)
memory usage: 43.7+ KB

Next Steps

This guide has provided you with the fundamental steps to install and use the gfw-api-python-client for making basic API requests.

To further explore the capabilities of our APIs (4Wings, Vessels, Events, Insights, Datasets, Bulk Download, References, etc.), please refer to the detailed Usage Guides and Workflow Guides. These guides delve into specific use cases and demonstrate how to effectively leverage the gfw-api-python-client for your data exploration needs.

Happy coding and data exploring!
